BANCS D'ESSAIS POUR L'AUTOMOBILE
Quelques exemples de réalisations
![Stacks Image 761](files/stacks-image-7818a4c.jpg)
![Stacks Image 763](files/stacks-image-bd238a0.jpg)

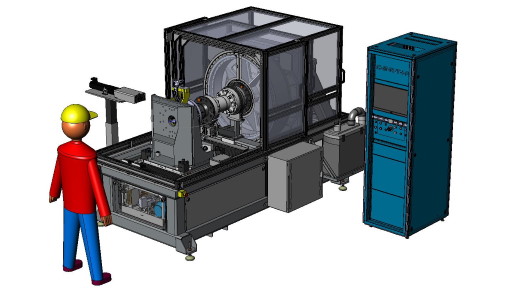

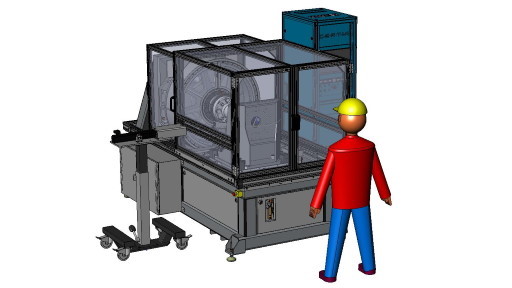

Customer : HITACHI
Year : 2022
Program : development
Description : test bench for braking systems characterization
![Stacks Image 766](files/stacks-image-ab1418f.jpg)
![Stacks Image 780](files/stacks-image-efb1ad6.jpg)

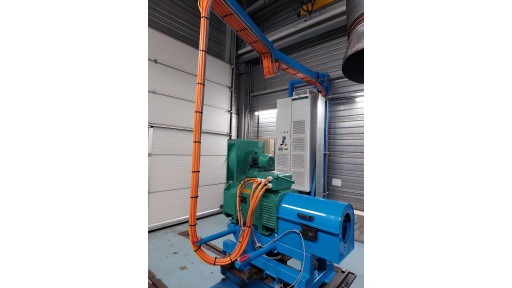

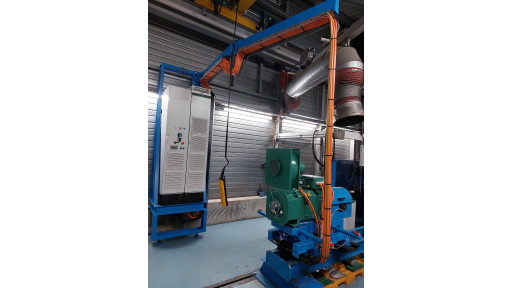

Customer : GIMA
Year : 2021
Program : development
Description : integration of a 180kW electric motor instead of thermic motor on existing test bench
![Stacks Image 704](files/stacks-image-1e1431c.jpg)

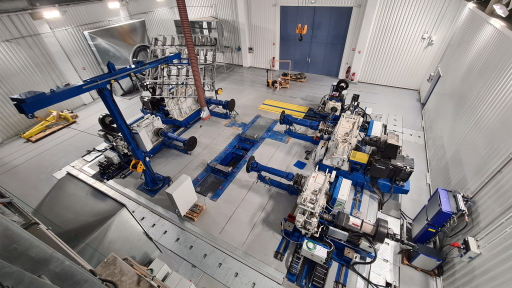

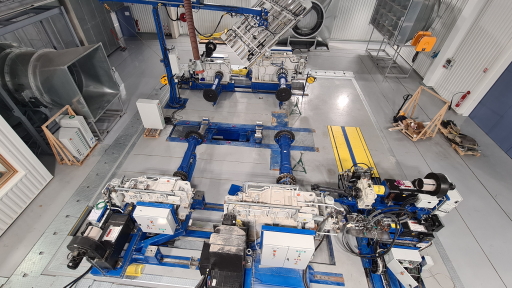

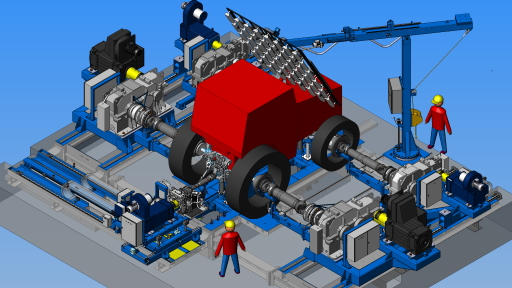

Customer : CETIM
Year : 2020
Program : development
Description : test bench for tractors wheel loading, PTO loading and sun rays simulation
![Stacks Image 746](files/stacks-image-8a69ed2.jpg)
![Stacks Image 748](files/stacks-image-66d7918.jpg)
![Stacks Image 719](files/stacks-image-c8e018d.jpg)

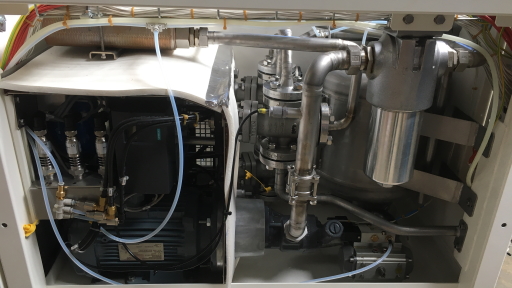

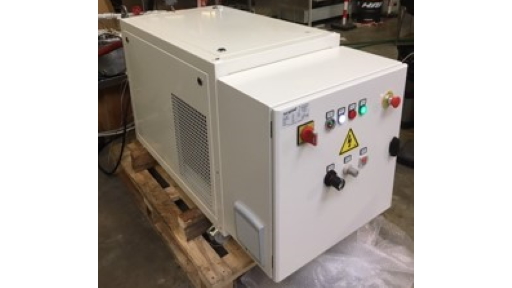

Customer : VALEO
Year : 2020
Program : development
Description : hydraulic unit for components using fluid with controlled flow and pressure and controlled high and low temperatures (from -40°C to +140°C)
![Stacks Image 724](files/stacks-image-24e473c.jpg)
![Stacks Image 695](files/stacks-image-6cbb191.jpg)

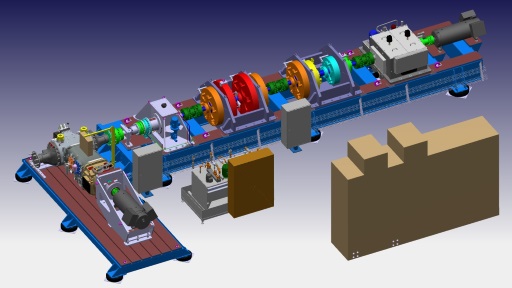

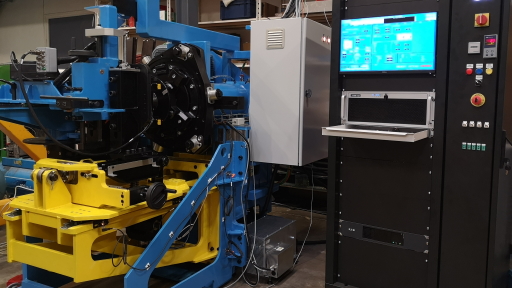

Customer : ILJIN / SOUTH KOREA
Year : 2019
Program : development
Description : stiffness and bearing reliability tests on wheel mountings installed with our without a wheel. Capabilities up to 20” wheels, 2000 rpm and 3 tons loading on vertical and horizontal axis
![Stacks Image 734](files/stacks-image-d7e3dbe.jpg)

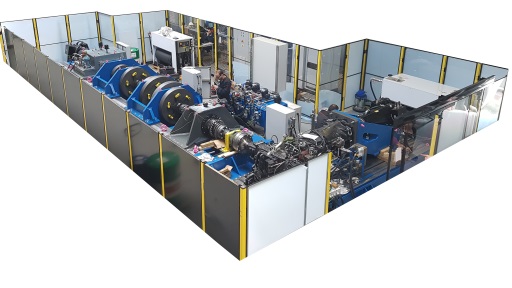

Customer : CETIM
Year : 2017
Program : R&D
Description : mechanical structure with electrical motors for gearboxes shifting characterization and endurance tests
![Stacks Image 739](files/stacks-image-59086e2.jpg)
![Stacks Image 174](files/stacks-image-433d312.jpg)
Tyre stiffness test bench
Customer : PSA PEUGEOT CITROEN
Program : development
Description : mechanical structure with two servo controlled axises for tyre stiffness characterization with its control andmonitoring device
![Stacks Image 191](files/stacks-image-b57f0ed.jpg)

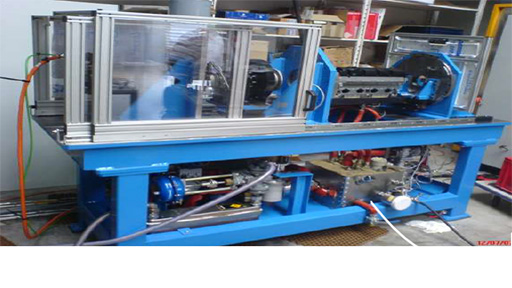

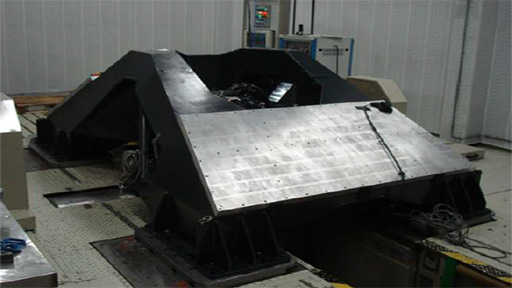

Heat engine cradle
Customer : PSA PEUGEOT CITROEN
Program : development
Description : rigid mechanical frame for heat engines installation
![Stacks Image 193](files/stacks-image-1bb3dac.jpg)

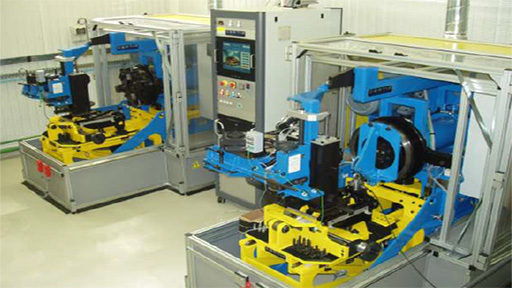

Heat engine distribution measurement test bench
Customer : PSA PEUGEOT CITROEN
Program : development
Description : mechanical structure with drive motor and integrated hydraulic power plant for heat engine distribution measurements with its control and monitoring bay
![Stacks Image 197](files/stacks-image-e35a185.jpg)

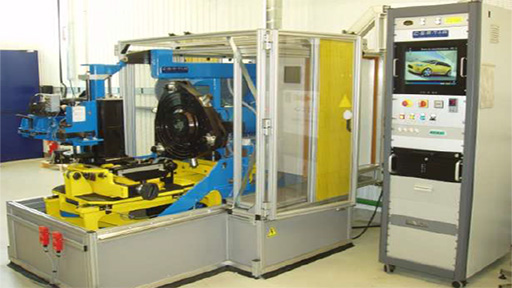

Wheel mounting test bench
Customer : PSA PEUGEOT CITROEN
Program : development
Description : mechanical structure with drive motor and two servo controlled axises for wheel mounting characterizationwith its control and monitoring bay
![Stacks Image 217](files/stacks-image-c46fa50.jpg)
![Stacks Image 195](files/stacks-image-10e5dcd.jpg)

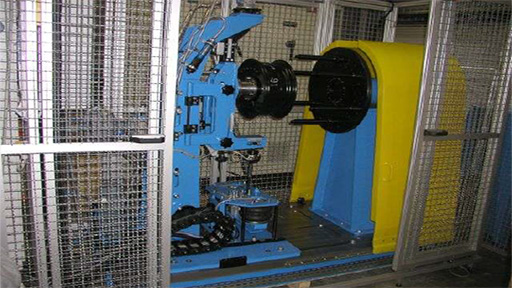

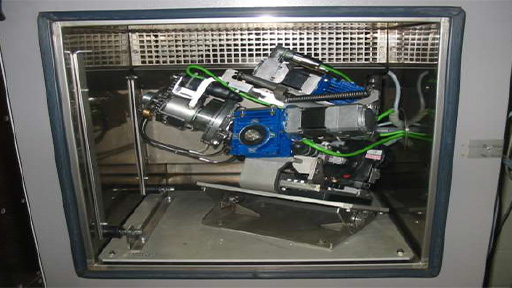

Banc flexion rotative de roue
Customer : ACI / RENAULT
Program : development
![Stacks Image 240](files/stacks-image-8bb2a16.jpg)
Comodos test bench
Customer : PSA PEUGEOT CITROEN
Program : development
Description : mechanical instrumented devices simulating human actions on comodos in large range of temperature
![Stacks Image 244](files/stacks-image-55b3206.jpg)

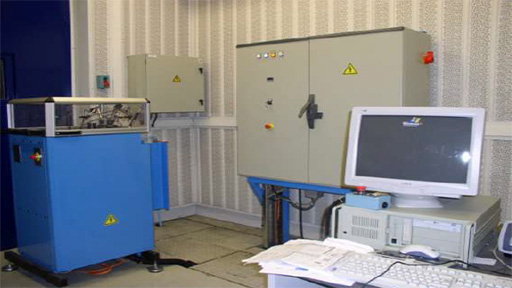

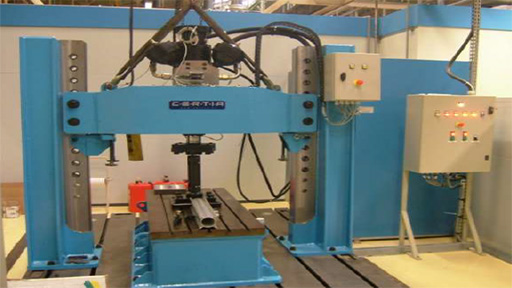

Servo hydraulic test bench
Customer : PSA PEUGEOT CITROEN
Program : development
Description : mechanical structure with servo controlled hydraulic actuator for dynamic sollicitation of large range of mechanical parts with its hydraulic power plant and its control and monitoring bay
![Stacks Image 257](files/stacks-image-b2a7ca2.jpg)

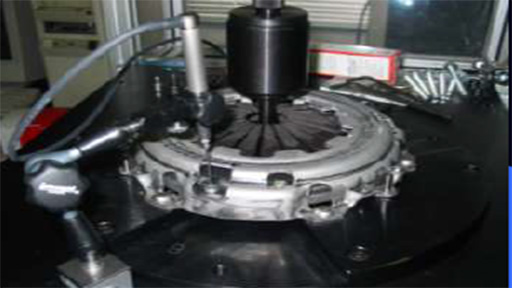

Clutch test bench
Customer : PSA PEUGEOT CITROEN
Program : development
Description : mechanical structure for clutch characterization tests with its control and monitoring bay
![Stacks Image 264](files/stacks-image-ddf0e98.jpg)
![Stacks Image 280](files/stacks-image-421e96a.jpg)

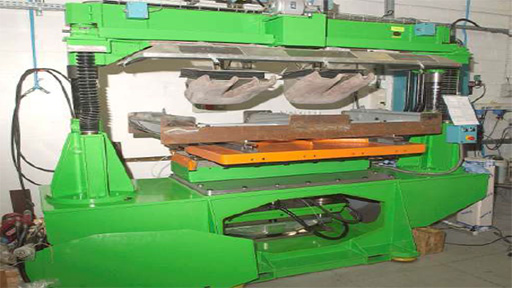

Car seats test bench
Customer : PSA PEUGEOT CITROEN
Program : development
Description : mechanical structure with two servo controlled hydraulic actuators for endurance and characterization tests on car seats with its hydraulic power plant and its control and monitoring bay
![Stacks Image 292](files/stacks-image-66d6147.jpg)

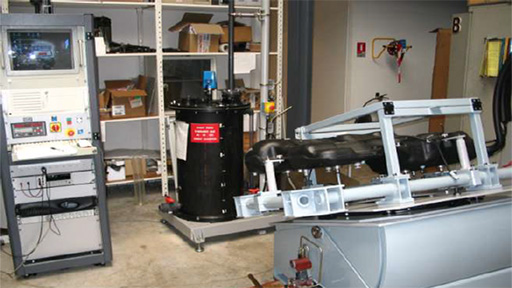

Fuel gauging test bench
Customer : PSA PEUGEOT CITROEN
Program : development
Description : mechanical structure and its hydraulic power plant and control and monitoring bay for filling, draining and consumption tests on fuel tanks
![Stacks Image 328](files/stacks-image-652e614.jpg)

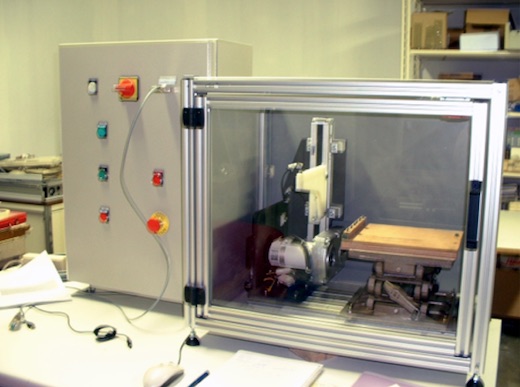

Banc de qualité sertissage
Customer : PSA PEUGEOT CITROEN
Program : development
![Stacks Image 340](files/stacks-image-2d3dbce.jpg)

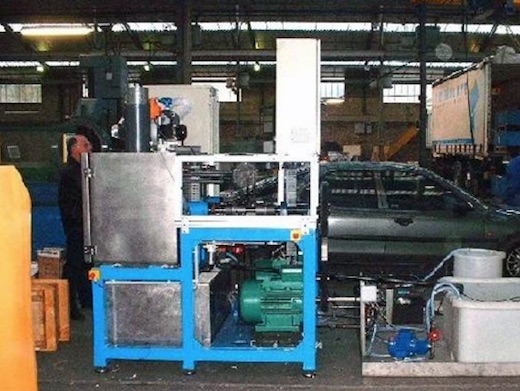

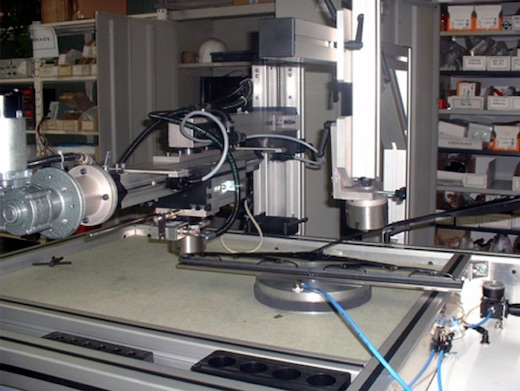

Banc d'essuie-glaces
Customer : VALEO
Program : development
![Stacks Image 353](files/stacks-image-93018a0.jpg)

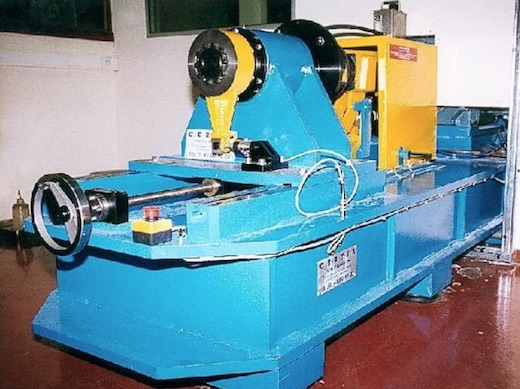

Banc de corrosion de freins
Customer : BOSCH
Program : development
![Stacks Image 365](files/stacks-image-8029b02.jpg)

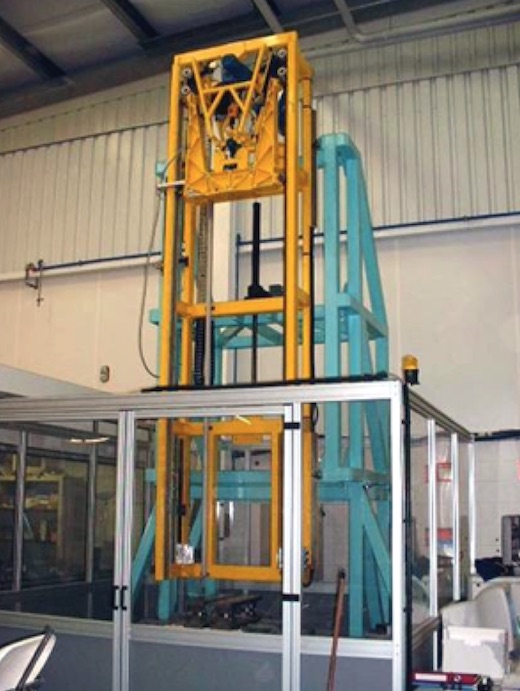

Banc de freinage dynamique
Customer : BOSCH
Program : development
![Stacks Image 474](files/stacks-image-e16c38e.jpg)

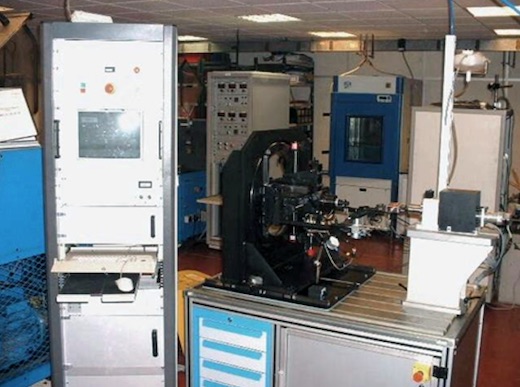

Banc d'essais de sièges
Customer : FAURECIA
Program : development
![Stacks Image 378](files/stacks-image-22b745b.jpg)

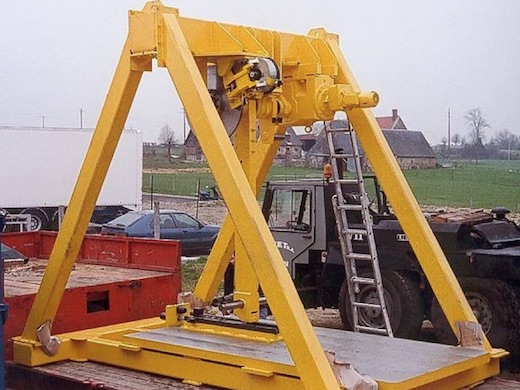

Banc de freins a disque
Customer : BOSCH
Program : development
![Stacks Image 390](files/stacks-image-bd8dd65.jpg)
Bancs de ceintures de sécurité
Customer : AUTOLIV
Program : development
![Stacks Image 639](files/stacks-image-9d4f85f.jpg)

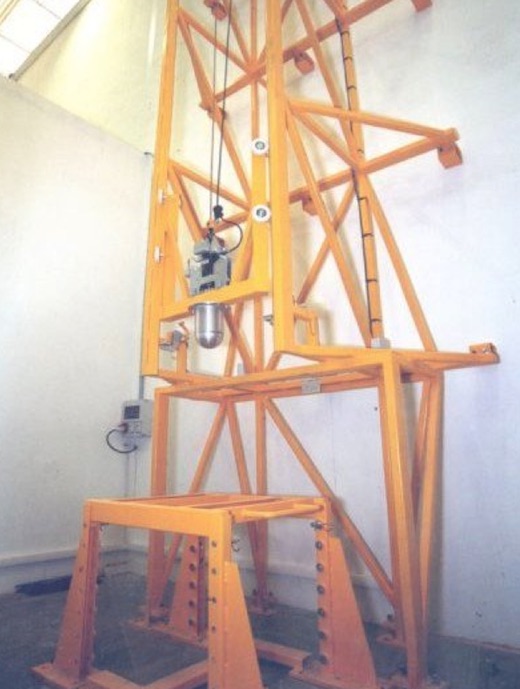

Banc d'essais d'airbags
Customer : AUTOLIV
Program : development
![Stacks Image 651](files/stacks-image-3fd7054.jpg)

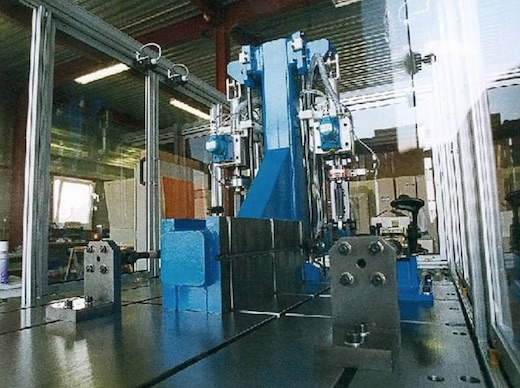

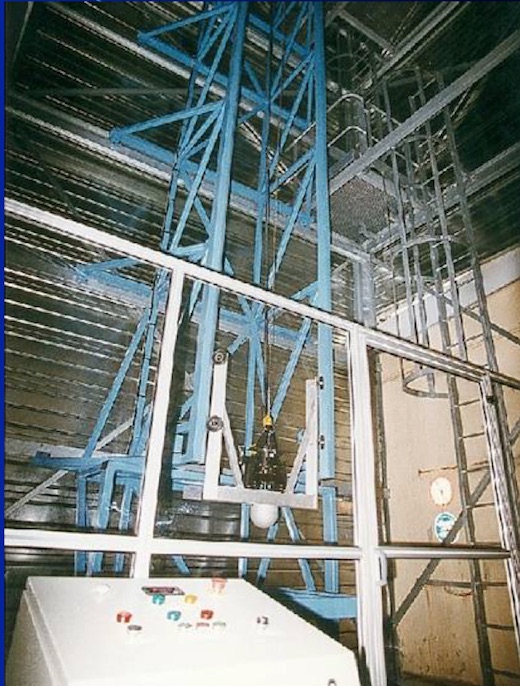

Bancs d'essais d'airbags
Customer : AERAZUR
Program : development
![Stacks Image 614](files/stacks-image-773b273.jpg)

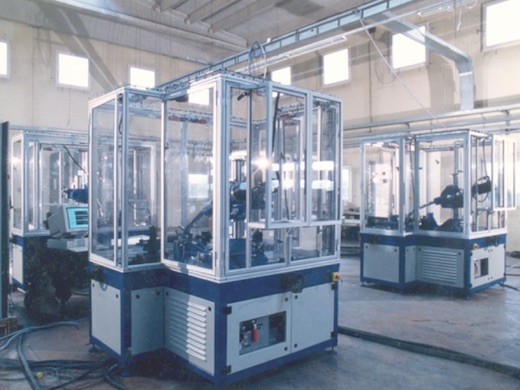

Banc de colonnes de direction assistée
Customer : DELPHI
Program : development
![Stacks Image 626](files/stacks-image-26f2c9c.jpg)

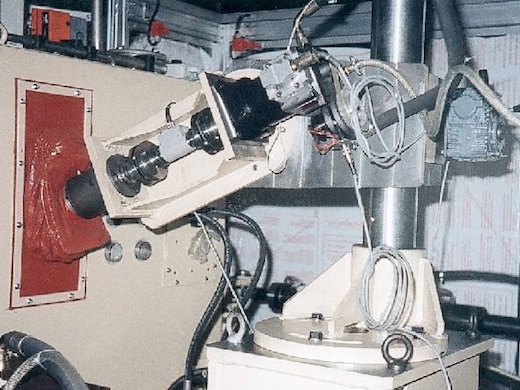

Bancs de crémaillères de direction assistée
Customer : DELPHI
Program : development
![Stacks Image 403](files/stacks-image-d5aad26.jpg)

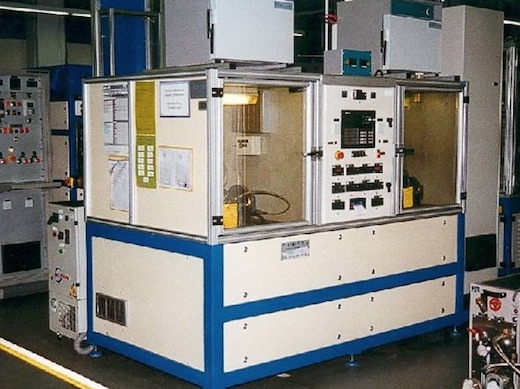

Banc de direction assistée
Customer : SMI
Program : development
![Stacks Image 415](files/stacks-image-7f75c28.jpg)
Bancs de pompes de direction assistée
Customer : DELPHI
Program : development
![Stacks Image 512](files/stacks-image-e3d7e26.jpg)

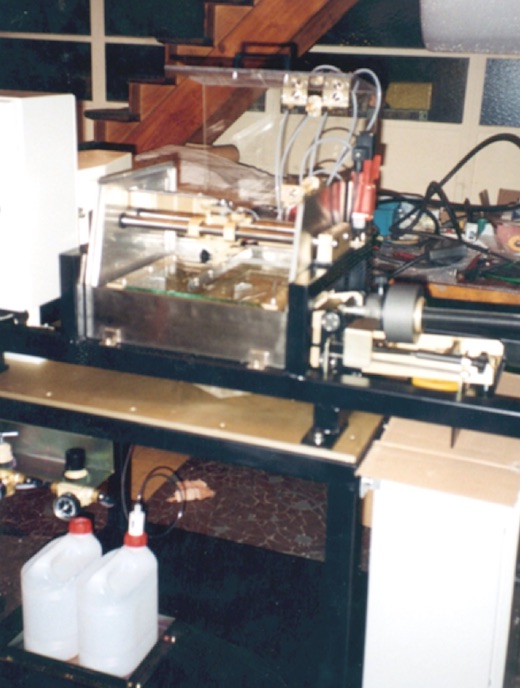

Machine d'essais de frottements
Customer : SGR
Program : development
![Stacks Image 524](files/stacks-image-c80e942.jpg)

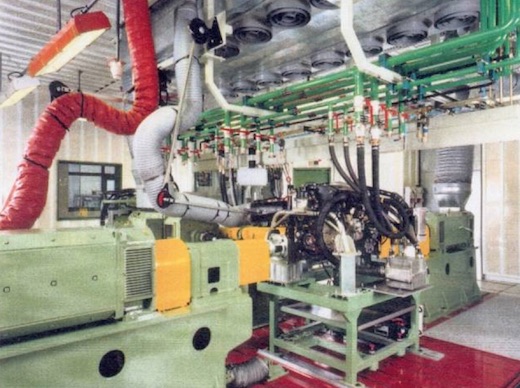

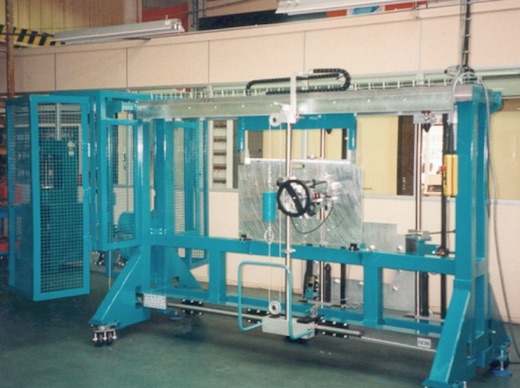

Banc de lève-vitres
Customer : ROCKWELL
Program : development
![Stacks Image 587](files/stacks-image-95a5b2b.jpg)
Robot de commande de boîte de vitesse
Customer : RENAULT
Program : development
![Stacks Image 599](files/stacks-image-df97520.jpg)

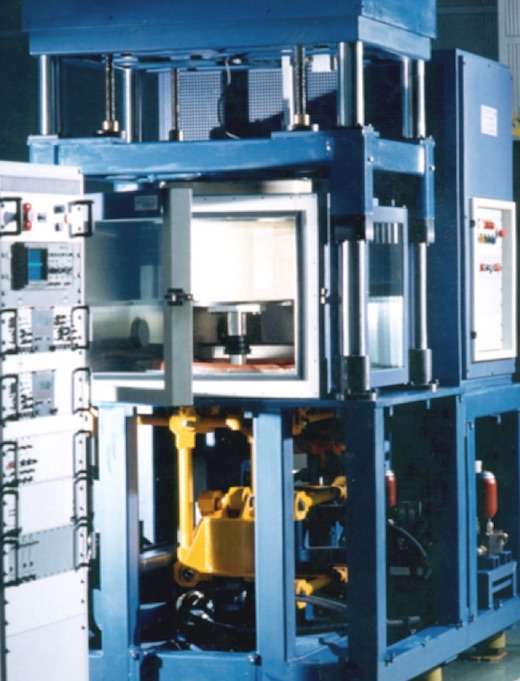

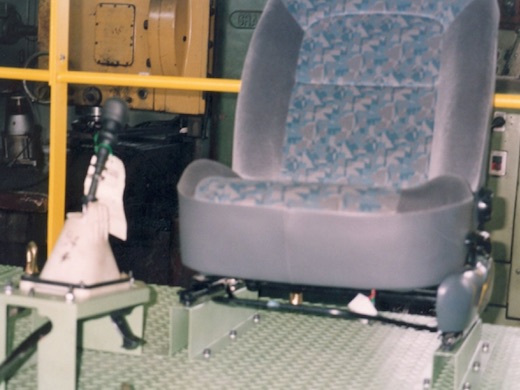

Banc de mesure de synchroniseurs de boîte de vitesses
Customer : RENAULT
Program : development
![Stacks Image 664](files/stacks-image-9990d6c.jpg)

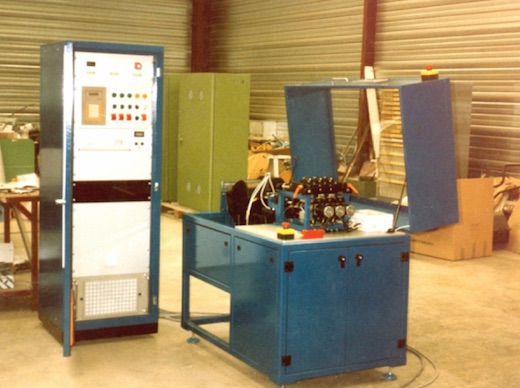

Banc d'endurance de tampons de suspension moteur
Customer : RENAULT
Program : development
![Stacks Image 676](files/stacks-image-34ce8ae.jpg)

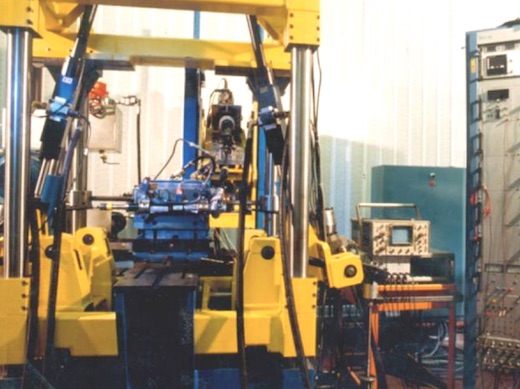

Banc d'essais de durabilité
Customer : FORD
Program : development
![Stacks Image 562](files/stacks-image-99f5055.jpg)

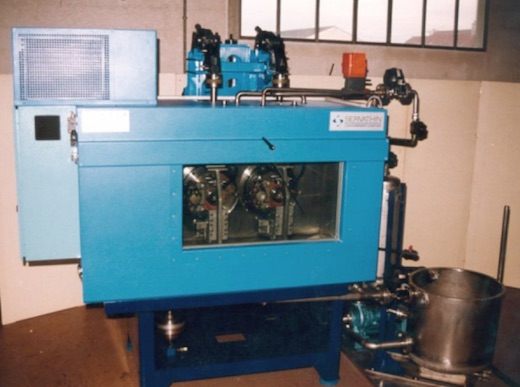

Banc DIRA
Customer : RENAULT
Program : development
![Stacks Image 574](files/stacks-image-1844187.jpg)

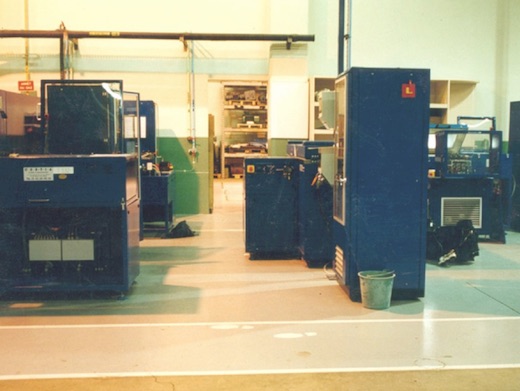

Banc d'essais d'étanchéité de roulements
Customer : SNR
Program : development
![Stacks Image 539](files/stacks-image-fff7a7e.jpg)
Banc d'endurance de chauffage et de climatisation
Customer : FORD
Program : development
![Stacks Image 551](files/stacks-image-740b333.jpg)

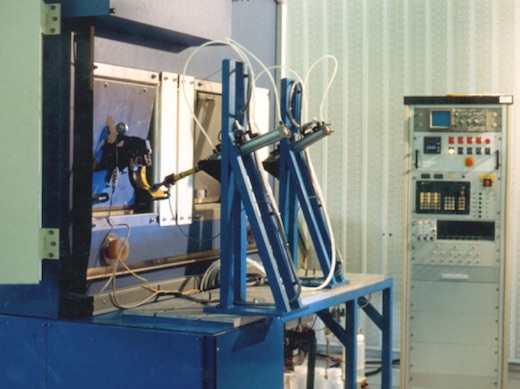

Banc d'endurance de commande d'embrayage
Customer : RENAULT
Program : development
![Stacks Image 428](files/stacks-image-5f63eb3.jpg)

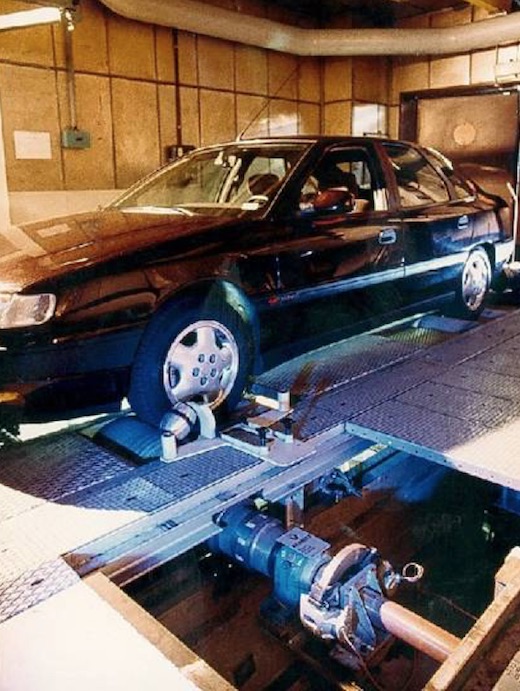

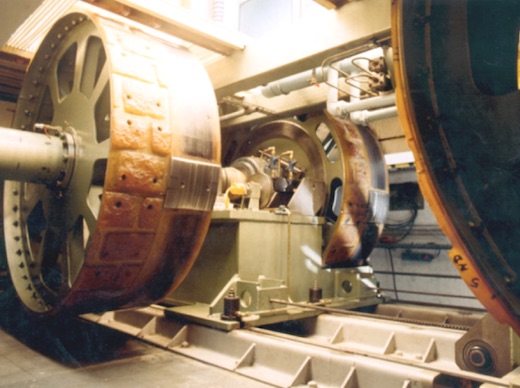

Banc à rouleaux
Customer : RENAULT
Program : development
![Stacks Image 440](files/stacks-image-2232f02.jpg)
Banc de recherche de bruit
Customer : RENAULT
Program : development
